TECHNICAL SPECIFICATIONS

Pump type:

Macerator

Electrical:

110 V – 60 Hz / 4.5 Amps (Max)

Motor:

0.5 HP oil-filled thermally protected motor

Capacitor rating:

45 microfarad

Operating Temperature:

104ÅãF (110ÅãF Max.)

Power cord length:

48 inches

Noise level:

≤ 53 dBA (Lp) (measured at 3 ft.)

Discharge pipe diameter:

3⁄4” or 1”

Discharge rate at 15 ft:

17 GPM

Discharge rate at 3 ft:

27 GPM

Shut-off head:

30 ft.

Normal running time:

Depends on toilet system

Capacity:

3.5 gallons / 13.2 liters

Inlets:

1–1/2” (sides), 1–1⁄2” vent (top)

Method of activation:

Membrane/microswitch

Shower/bathtub base height:

6” min

Weight:

17 lbs / 7.7 kg

Certifying agencies:

CSA (IPC, NSPC), IAPMO (UPC)

Recommended accessories:

Descaler, Sanialarm

Connections:

Wall hung toilet, sink, shower

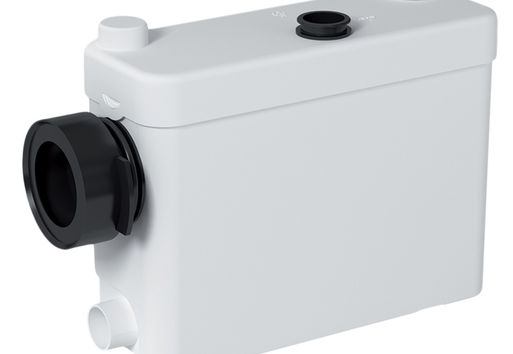

Sanipack -
SPECIAL ORDER

Sani 011

DESCRIPTION

The Sanipack is a 1/2 HP pump system used to install a complete bathroom up to 15 feet below the sewer

line, or even up to 150 feet away from a soil stack. It incorporates a macerating system which can handle

human waste and toilet paper in residential applications. The blade is made out of a hardened stainless steel

material which eliminates the need for any service or replacement.

PRODUCT INFO

  • Discharges the waste through a 3⁄4” or 1” rigid pipe. A non-return valve is included on the discharge elbow assembly provided with the system. This elbow can be rotated 360 degrees depending on the discharge installation.

  • Has been designed with a 1–1 ⁄ 2 ” vent connection on the top of the lid. All plumbing codes require connection to a vent system. Please note that the vent system should be a two-way air vent as air needs to freely flow both ways. Note: The use of mechanical vents, air admittance valves or similar devices is not permitted.

  • This pump is designed to be connected to any wall-hung toilet (not supplied by Saniflo). Note that there should be a minimum 1⁄4” per foot gravity fall on the waste pipe coming from the toilet into the pump.

  • Will also discharge gray water from any sink, shower or urinal. The wastewater will drain into the system via two 1–1 ⁄ 2 ” inlets with built-in check valves on either side of the housing. Note that when adding a shower, the base should be raised up by a minimum of 6” off the floor.
